Calculates the Bessel function of the first kind of the order 0.
Syntax
J0(Number)
The syntax of the J0 function consists of the following parts:
Part |
Description |
|---|---|
Number |
The argument for the function. All data structures are allowed. All numeric data types are permitted. |
Remarks
The data type of the result is always 64-bit floating point.
The structure of the result corresponds to that of the argument Number. The calculation is done element-by-element where appropriate.
The result has the unit 1, if Number has a unit. Otherwise, it has no unit.
For aggregate data structures, only the Y component is calculated.

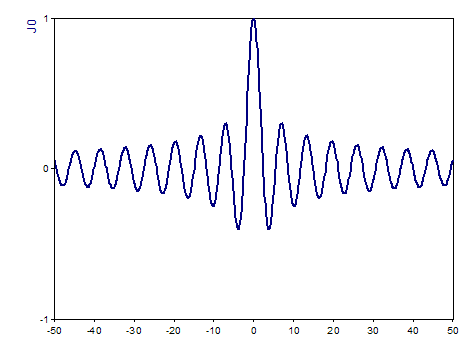

The real Bessel function is calculated for a real argument. The result then has the 64-bit floating point value data type. The following illustration shows the course of the function within the interval [-50, 50]:

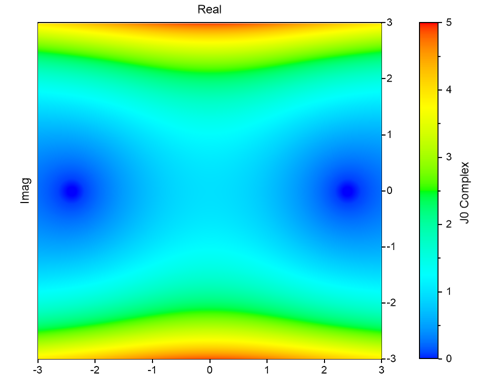

If Number is complex, the complex Bessel function is calculated. The result then has the complex 64-bit floating point value data type. The following illustration shows the course of the absolute value of the function:
If the argument is a list, then the function is executed for each element of the list and the result is also a list.
For complex data types the absolute value is formed.
Available in
FlexPro Basic, Professional, Developer Suite
Examples
J0(0) |
Results in 1. |
Dim x |
Calculates a signal with the course of the curve within the interval [-50, 50]. |
See Also
References
[1] Donald E. Amos: AMOS - A Portable Package for Bessel Functions of a Complex Argument and Nonnegative Order. In: www.netlib.org. https://netlib.org/amos/, 1986.
